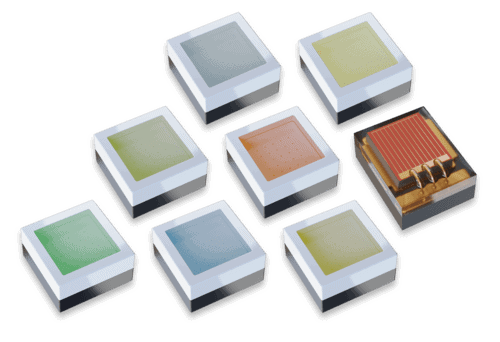

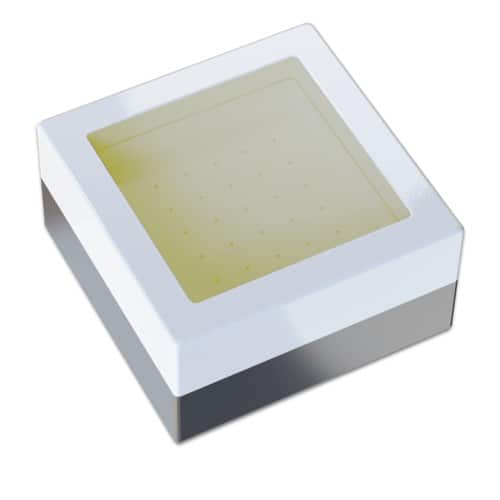

High drive, tiny LED, max performance.

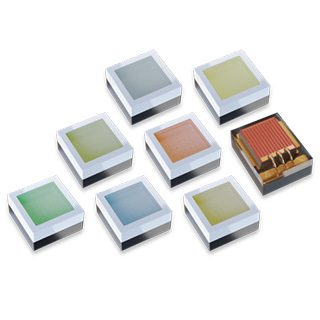

LUXEON Rubix is a breakthrough design for the LED industry. Designed with high drive current capability and small form factor, it provides maximum flux in a minimal amount of space making it ideal for entertainment, architectural and emergency vehicle lighting applications. This LED provides double the flux at a much higher drive current compared to previous generations. LUXEON Rubix LEDs are the smallest color emitters in the Lumileds portfolio enabling them to be packaged closer together to achieve high lumen output and high lumen density. The individual emitters and color gamut allow customers to have much better flexibility in their product design.

Features & Benefits

  • Tiny footprint 1414 package
  • High Drive current up to 3 Amps DC
  • Maximized punch (cd/lm)
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product Performance of LUXEON Rubix at 1500mA, Tj=85ºC.

Color Dominant or
Peak Wavelength (nm)
Luminous Flux (lm) OR
Radiometric Power (mW)
Part Number
Minimum Maximum Minimum Typical

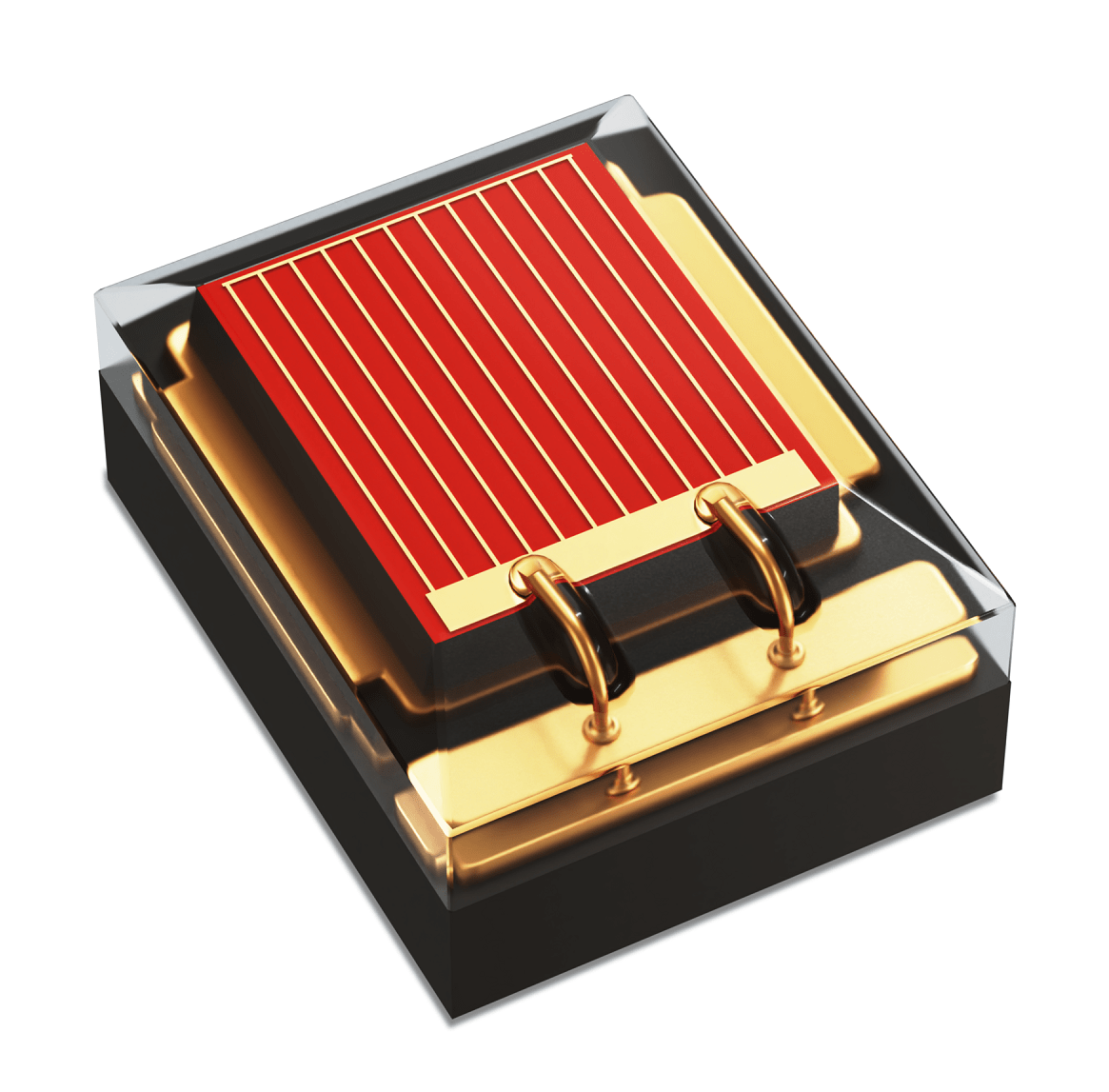

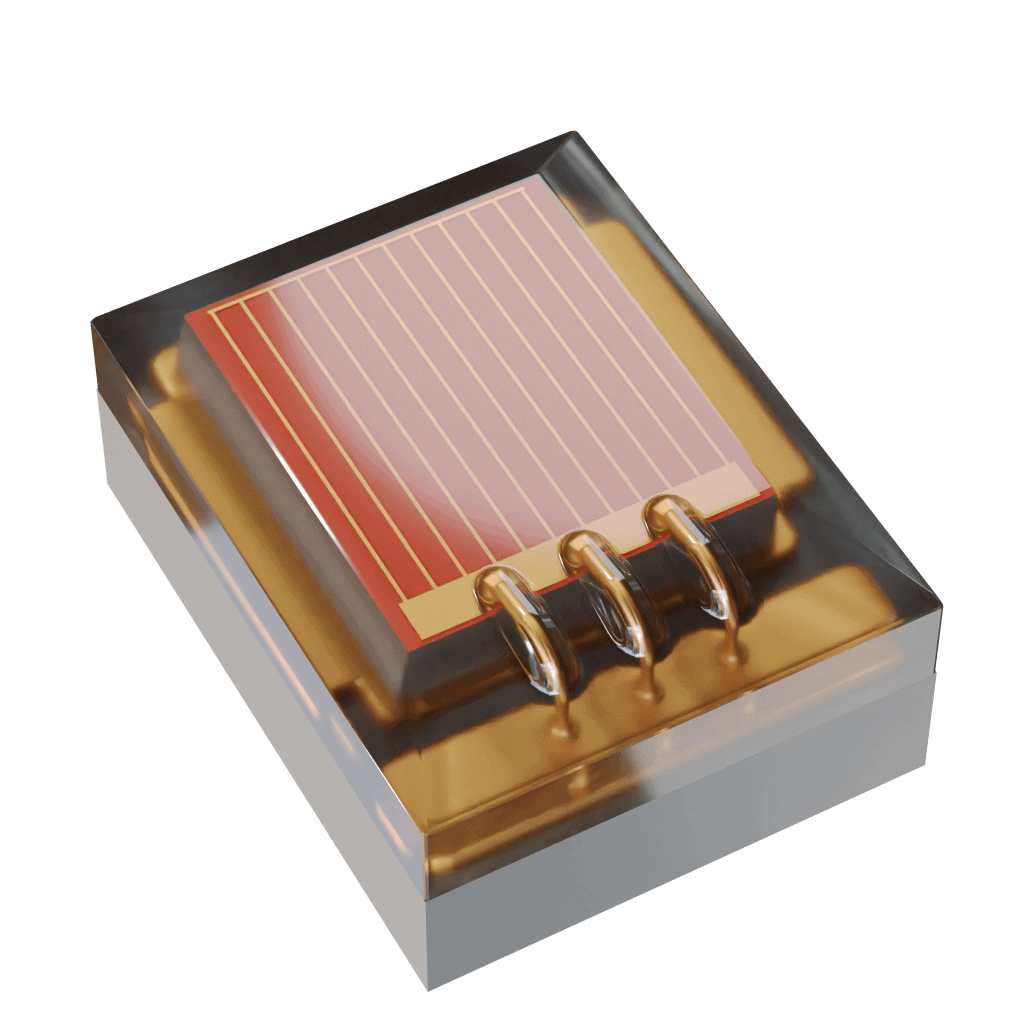

Red Red 620 630 75 85 L1RX-RED1000000000

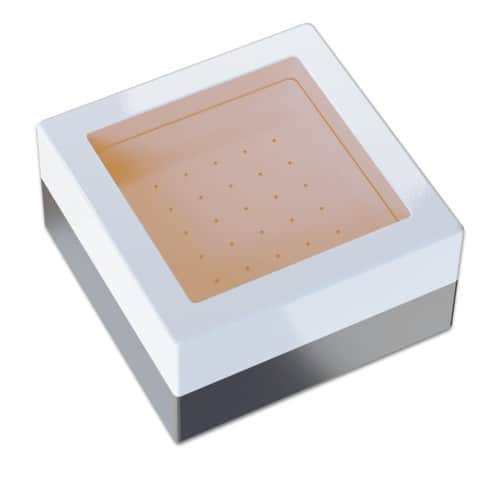

Amber PC Amber 220 250 L1RX-PCA1000000000

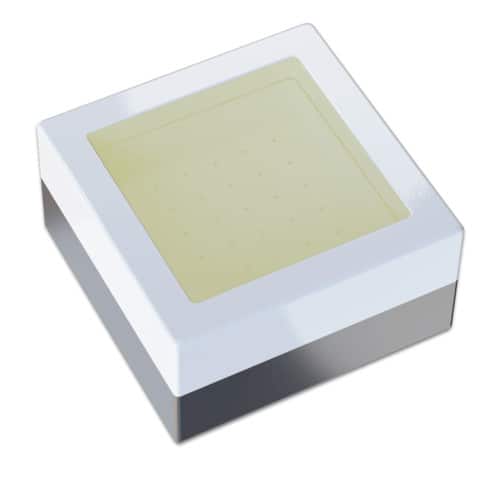

Green Lime 420 510 L1RX-LME1000000000

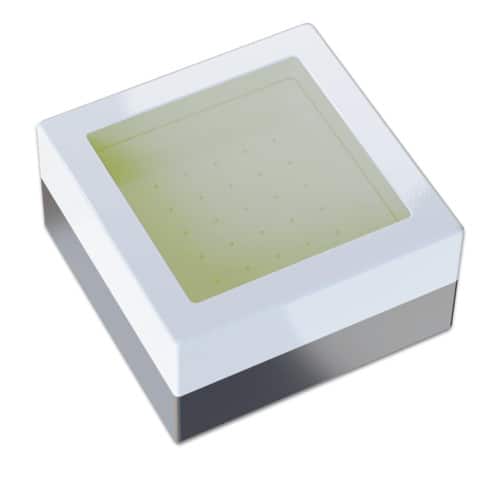

Green Green 520 535 260 310 L1RX-GRN1000000000

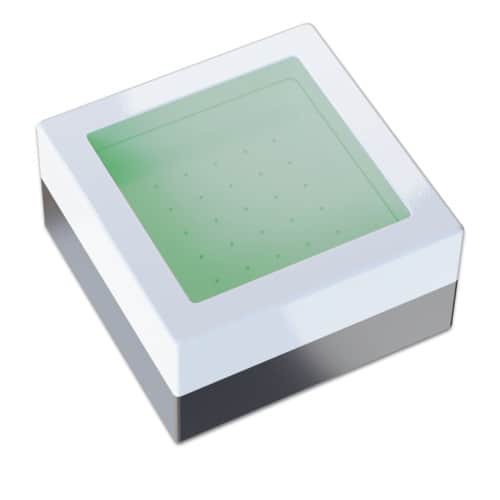

Cyann Cyan 490 510 180 230 L1RX-CYN1000000000

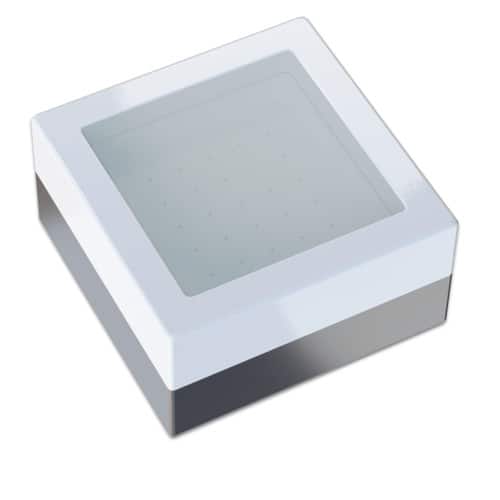

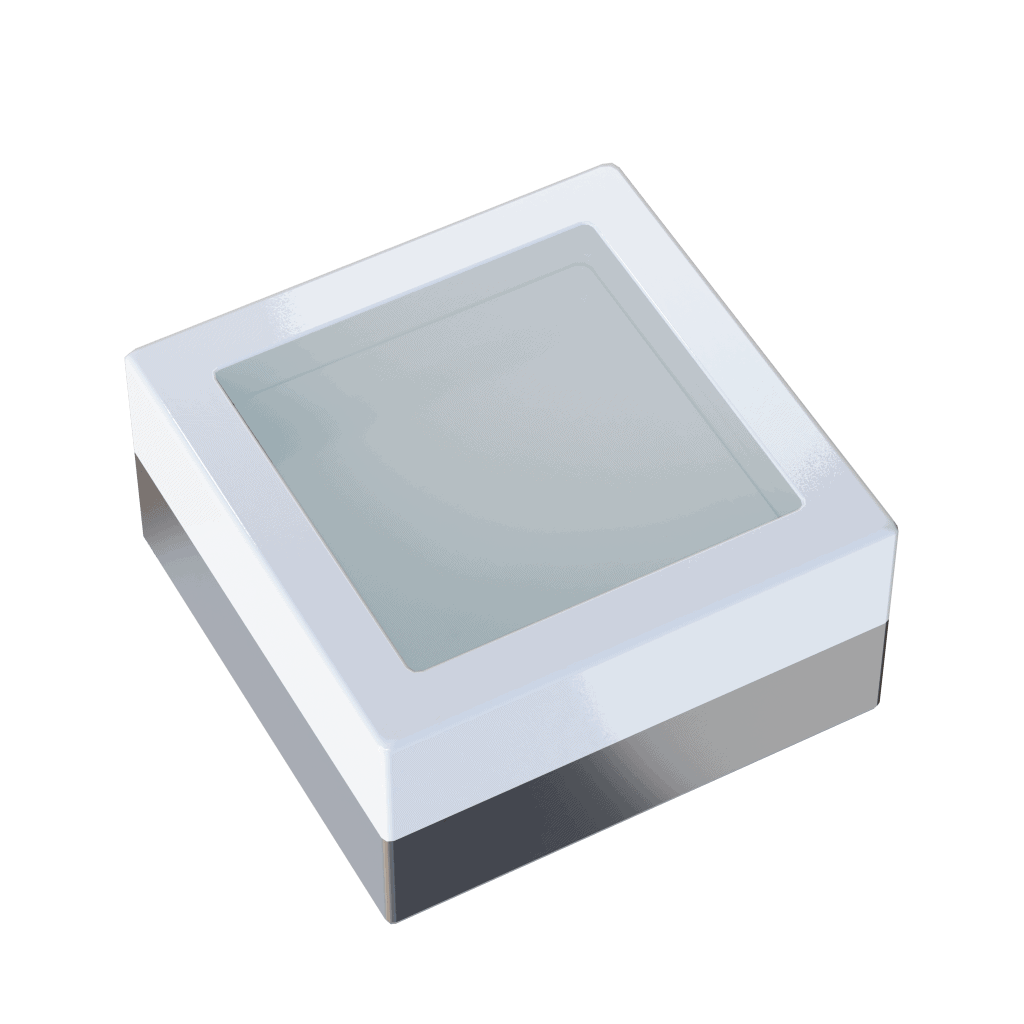

Blue Blue 465 485 70 112 L1RX-BLU1000000000
Royal Blue Royal Blue 440 455 1300 1635 L1RX-RYL1000000000

Product Performance of LUXEON Rubix L1RX-RED2000000000 at 1000mA, Tj=85ºC.

Color Dominant or
Peak Wavelength (nm)
Luminous Flux (lm) OR
Radiometric Power (mW)
Part Number
Minimum Maximum Minimum Typical
Red Red 620 630 60 71 L1RX-RED2000000000

Product Performance of LUXEON Rubix White at 1500mA, Tj=85°C

Color Nominal
CCT
Minimum
CRI [1]
Luminous Flux[1] (lm) Typical Luminous Efficacy (lm/W) Part Number
Minimum Typical
White 5700K 60 360 440 93 L1RX-5760000000000

Product Performance of LUXEON Rubix white at 1000mA, Tj=85°C

Color Nominal
CCT
Minimum
CRI [1]
Luminous Flux[1] (lm) Typical Luminous Efficacy (lm/W) Part Number
Minimum Typical
White 6500K 70 220 315 106 L1RX-6570000000000
2200K 80 140 208 70 L1RX-2280000000000
2700K 80 180 239 81 L1RX-2780000000000
3000K 80 200 263 89 L1RX-3080000000000
3500K 80 200 270 91 L1RX-3580000000000
4000K 80 200 274 93 L1RX-4080000000000
4500K 80 200 278 94 L1RX-4580000000000
6500K 80 220 280 95 L1RX-6580000000000
2700K 90 140 205 69 L1RX-2790000000000
